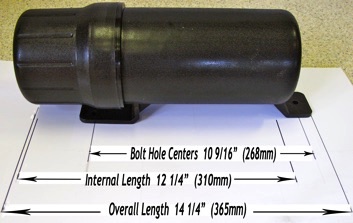

MegaTube Dimensions

4 5/16” (109mm)  internal body diameter

5 1/8” outside cap diameter at collar

12 1/4” (310mm) internal body length, body and cap

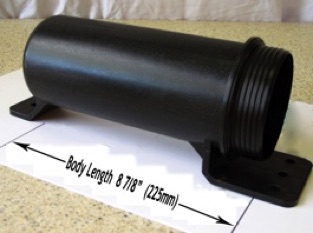

8 7/8”  (225mm) internal length, body only

14 1/4” overall length, cap end to outer edge of opposite bracket

10 9/16” (268mm) bolt hole center

3 bolt holes, 1/4”+, at threaded end of body.  One hole at foot end bracket.

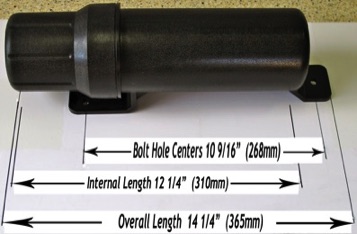

3 5/16” (84mm)  internal body diameter

4” (102mm) external cap diameter at collar

12 1/4” (310mm) internal body length, body and cap

8 7/8”  (225mm) internal length, body only

14 1/4” overall length, cap end to outer edge of opposite bracket

10 9/16” (268mm) bolt hole center

3 bolt holes, 1/4”+, at threaded end of body.  One hole at foot end bracket.

ToolTube Dimensions
